Description
1.5 layer forming fabric is actually a 5-shed single layer fabric that has modified to have extra yarns which provide it the same properties as that of a double layer one. The extra yarns provide better sheet side smoothness as well as improved retention.
Thanks to its unique structure, it delivers very good drainage and ease of cleaning.
1.5 Layer forming fabric is mainly used on the packing paper machine with machine speed 50m-400m/min, which have high air permeability as single layer forming fabric, and have a longer life than single layer forming fabric.

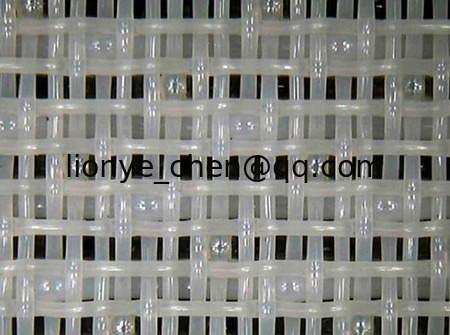

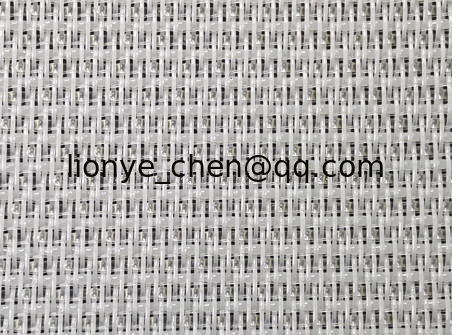

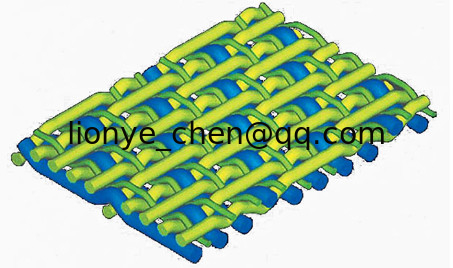

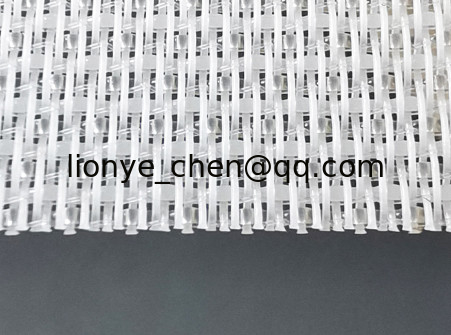

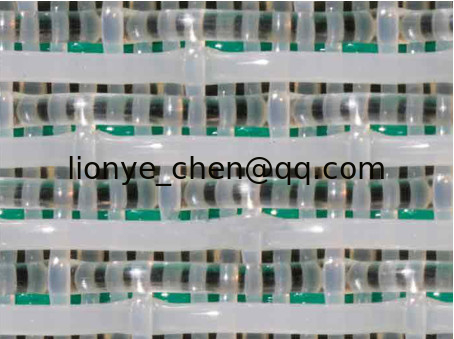

1.5-layer 5-shed with Extra Yarns
Feature
● Excellent drainage capacity and ease of maintenance
● Easier to clean, better sheet release and faster drainage than double layer fabrics.
● Better drainage and fiber support than single-layer fabrics.
● Longer lifetime and better dimensional stability.
Application
1.5 Layer Forming Fabric is mainly used on the board, liner, brown paper and corrugated paper machine with machine speed 50m-400m/min, which have high air permeability as single layer forming fabric, and have a longer life than single layer forming fabric.
Specifications
| Weaving series | Model |
Diameter (mm) |
Density (Pics/cm) |
Strength (N/cm≥) |
Air Permeability (CFM) |
|||
| Warp | Weft | Warp | Weft | Area of Surface | Joint | |||
|
5 shed 1.5 layer forming fabric |
254510 | 0.22 | 0.13/0.45 | 28 | 26.8 | 700 | 500 | 443 |
| 254010 | 0.22 | 0.22/0.40 | 28 | 32.2 | 700 | 500 | 525 | |
